Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review
Release time:
2021-09-16

If the bicycle must be equipped with a pedelec system, there is no doubt that mountain bikes and commuting bikes are the most suitable vehicles. In the past five years, the e-MTB bike market has increased exponentially.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


The emerging manufacturer Mivice recently sent us a e-MTB bike equipped with powerful and higher rated power Mivice M080 pedelec drive system. Let's see the performance of M080!


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


MIVICE M080 Pedelec Drive System


Motor: MIVICE M080 Rear Hub Motor 36V 350W


Controller:MIVICE C200


Torque sensor:MIVICE S200


Display:D92 intelligent color screen LCD


Battery:B300 36V 18.2AH embedded battery, imported cell


Highlights:The whole system is self-developed, lightweight, low noise, low resistance, efficient and high-capacity battery


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Like the previous M070 drive system, M080 is still a mature and stable rear hub motor, 36V 350W, with maximum efficiency of 83% and maximum torque ≥ 40nm.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

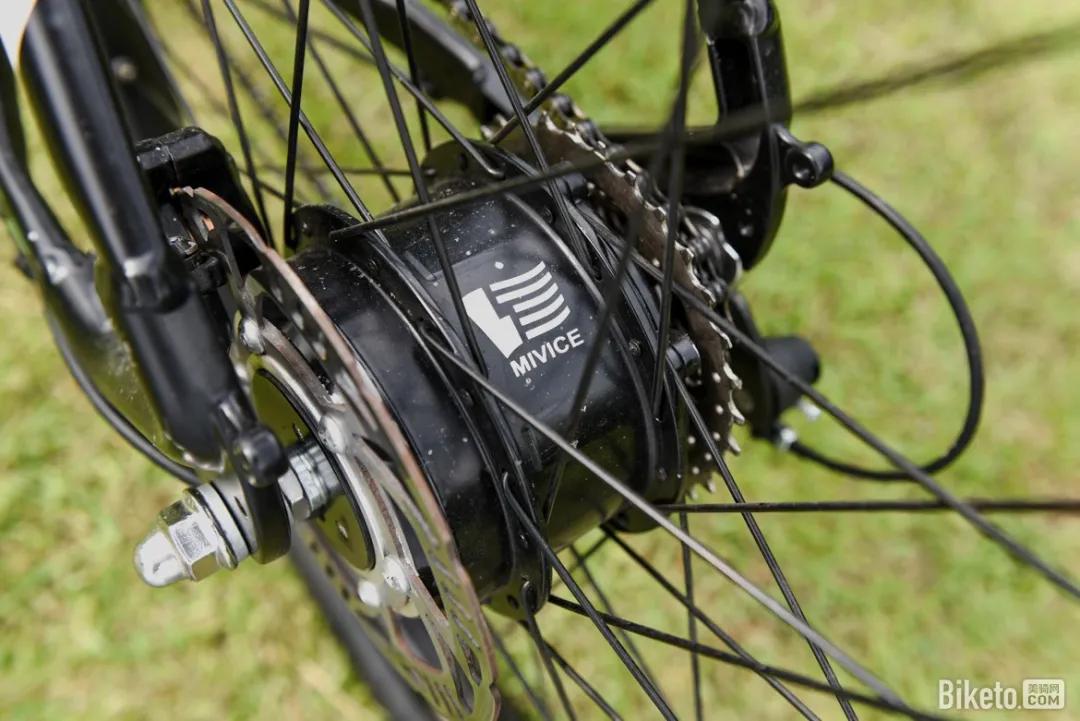

▲M080 rear wheel hub motor can install disc brake


It is also a small and lightweight design, which maintains the same excellent design as M070. Riders who have learned about M070 drive system should know that what MIVICE is good at building a low noise motor. Similarly, M080 has a unique gear set technology, and the low noise effect is as excellent as ever.


36V 18.2AH Battery


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

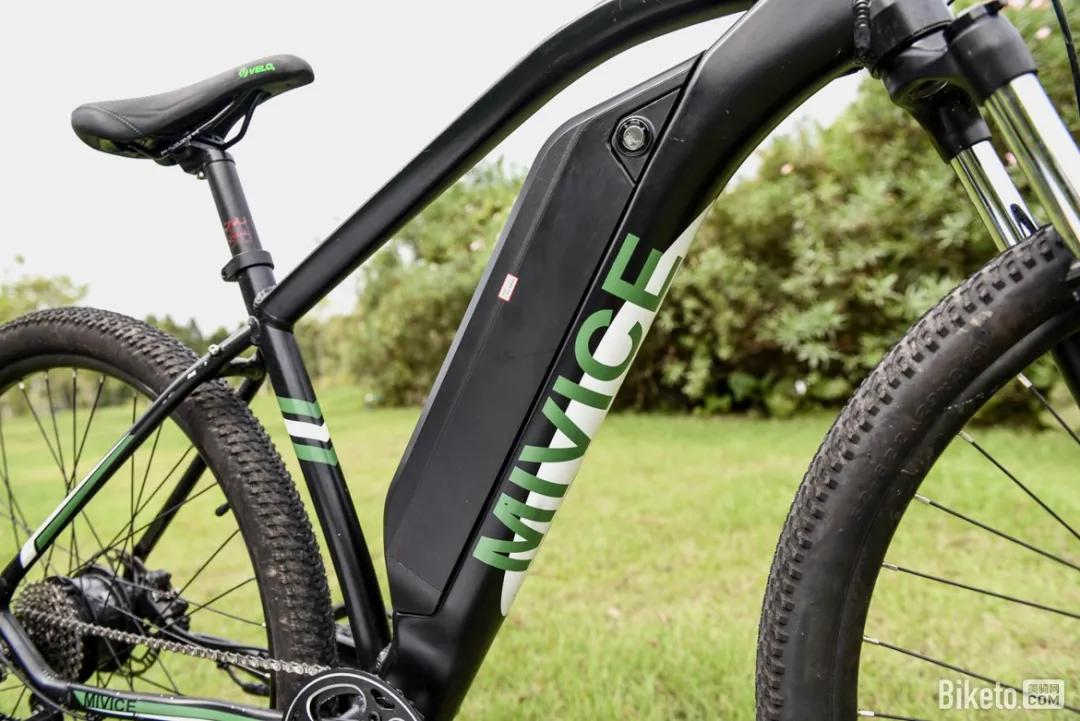

The strong power output on mountain road is inseparable from the guarantee of high-capacity battery. This 655.2wh battery weighs about 4kg and is placed on a 29-inch e-MTB bike. The visual effect of the battery embedded in the lower pipe is not bulky and not too abrupt.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

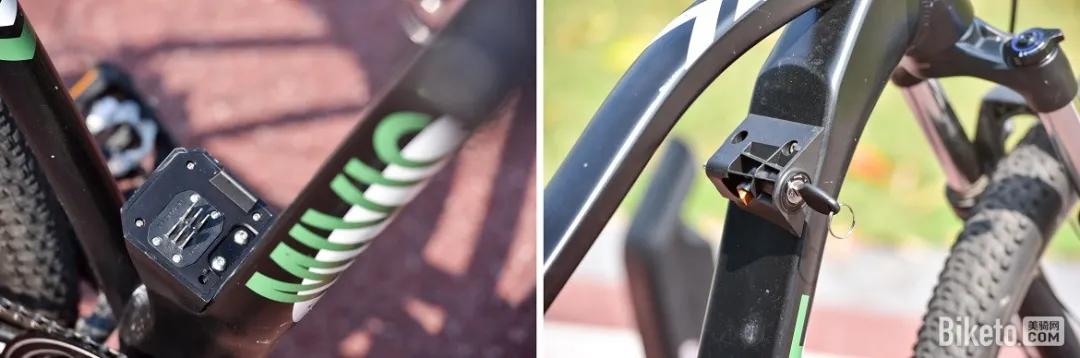

In the bumpy conditions on mountain road, the battery needs a stronger fastening device. The half pack battery embedding scheme is to install a 36V 18.2ah high-capacity battery in the mainstream installation position - the front triangle of the frame. The six plugs base is very firm, the upper oblique buckle locking device and battery oblique cutting locking, and there is a spring return design in the lock to further strengthen the stability of the battery.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Waterproof and low noise are the two advantages of Mivice motor system. The connecting wires of the whole system are fastened with bilateral metal threads, aviation harness, and the protection grade is up to IP67.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


A D92 intelligent large screen LCD display is equipped in the middle of the handlebar to show detailed data such as pedelec level, speed, battery, riding mileage and power.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


The large screen display in the middle is very practical. You can see the real-time riding status when you look down. In the process of daily riding, this huge display screen attracts people's attention, and the speed dashboard is also very eye-catching.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


The control button of the motor is set on the left side of the handlebar. Because it is a single disc system, there is no thumb shifter on the left side, so you can operate the motor more attentively. The button feels comfortable and comes with its own light control.


Riding Experience


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

E-MTB bikes doubly increased in the European and American markets, but they slowly increased in China because of two important reasons: One is the 'originalism' bicycle lovers' natural resistance to pedelec system; The other one is the high price of e-bikes deterred many people. With the development of the market, the situation has improved in the past two years. Riders who are willing to try something have already begun to enjoy the happiness brought by pedelec system.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Back on the M080 e-MTB bike, considering the high-power output and long-distance travel of mountain riding, Mivice specially designed a motor with higher power and a battery with larger capacity for it.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


The rear wheel motor drive mode retains the original frame geometry and transmission structure of the mountain bike, which can be said to be the most 'original' mountain bike. On the other hand, when such mature technology is applied to electric powered mountain bikes, compared with the middle motor, the cost is relatively lower and the acceptance degree is higher for ordinary enthusiasts.


Super Long Range


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

Since I have such a large capacity battery, the first thing I do is the range test. However, in any case, the whole battery cannot be used up in a short time. A single ride of 67km shows that there is still 35% of the remaining power; Another test is about 50 kilometers, with 55% of the remaining power. The first 30% of the power is powerful, especially 10%, is awesome. From the beginning, the 12 kilometers ride costs only 5% of the electricity. The middle also contains many stone roads, gravel roads, up and down slopes and other road conditions.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


This battery life is much better than the previous 70km 7.8ah battery. There is no need to worry about the range within 100 kilometers. With the same physical strength, Mivice can help you ride farther.


Stable Output


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

This M080 drive system has a similar riding experience with M070, which is simply summarized as smooth, smooth power on, smooth stepping and smooth boost. In addition to the smoothness as always, stable output is also a major advantage of this system. The stability of the hardware system lies in the firm device and excellent protection grade; The stability of the software lies in the industry's unique accurate algorithm and one-stop system solution. The stable performance of the whole set of motor system is reassuring, just like a good partner who can still take you to a distant place after going through wind, frost, rain and snow.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


From pedelec level 1 to level 5, each level is properly and evenly assisted. The power output is very stable and gives a very comfortable stepping assistance experience. As the MIVICE S200 torque sensor is used, the sensor is directly integrated at the bottom bracket, and the bilateral sensor can timely measure the stepping strength and respond. Therefore, the slow start of the traditional 29-inch mountain bike is no longer a problem with the support of the Mivice pedelec system. Even a slight stepping on, the sensor can respond quickly, much faster than the traditional manpower starting.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review



▲E-bike requires stronger braking. Disc brake is essential


Thanks to the small size of the rear hub motor and the hidden storage of the controller, the only increased weight is the battery. That is why this bike can be easily controlled whether it is uphill or downhill.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

M080 takes the human friendly route. The extreme violence scene of steep and short slopes is not the advantage of this motor system. However, after obtaining stable stepping, the motor will give stable power output. It is no problem to have long ups and downs. It is more suitable for weekend outings around the city and light off-road. With the high-capacity battery, it can not only reduce physical consumption, but also easily expand the riding radius and explore more interesting and fitness outing routes.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


It is worth mentioning that even when the power is exhausted, Mivice motor system also has a set of ultra-low damping design to realize ultra-low sliding resistance of the motor. The feeling in actual riding is that when the motor is turned off, it is a mountain bike with a little weight, and when the motor is turned on, it is a powerful e-bike. There is little difference between the overall riding feeling and the ordinary 29-inch hard tail mountain bike, especially after stepping on the normal frequency, it is what a normal mountain bike should feels like.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review

Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Most e-MTB bikes are used to solve the hardly passing routes when crossing the mountains. With the aid of pedelec system, e-MTB bike can easily climb over the mountains. When the people have no strength to step, the pedelec system can help them to reach the destination after the last ten kilometers of a long-distance ride. The e-MTB bike is not afraid of going uphill or downhill when passing through sections that are difficult to reach by manpower quickly. The 29-inch wheel diameter has excellent trafficability and can cross all kinds of terrain at will. Perhaps the most awful thing is to carry the bike yourself. After all, the weight of a 4Kg battery and a large wheel diameter aluminum alloy mountain bike is still heavy.


Long Range Riding and Powerful Performance-- Mivice M080 Pedelec Drive System Review


Anyone who has tried an e-MTB bike is full of praise for the riding experience. Once you ride it, you will know how great it is. I strongly recommend you feel it once, and you will have an extraordinary feeling. Anyone who wants to buy an e-MTB bike in the near future and is more focus on the riding experience and long range. I recommend you this set of Mivice M080 pedelec drive system.
